DCPlusPlus.Hub Class Reference

a class to manage information and the connection to a single hub More...

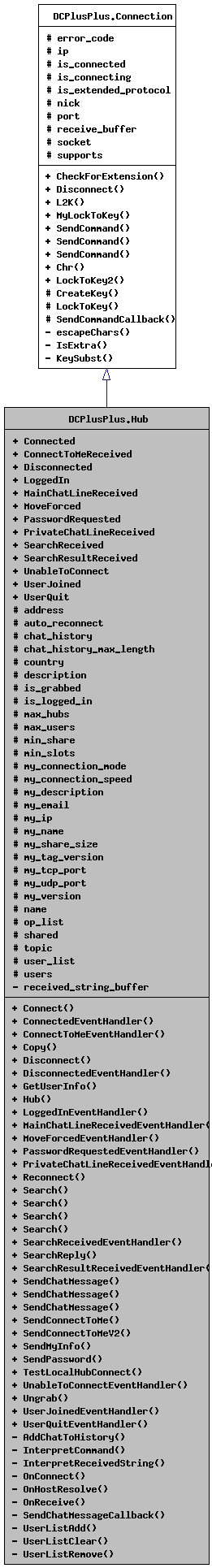

Inheritance diagram for DCPlusPlus.Hub:

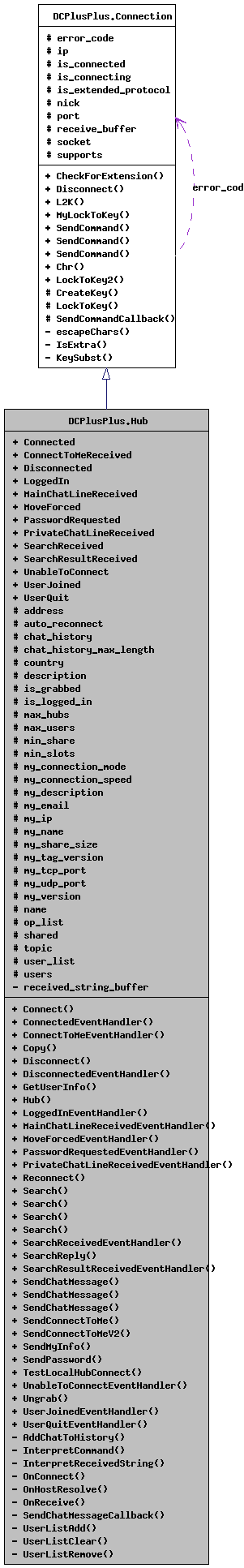

[legend]Collaboration diagram for DCPlusPlus.Hub:


Public Types
enum	ConnectionMode { Active, Passive }
	Enumeration of all possible connection modes for a hub. More...
enum	ConnectionSpeed { kbps_28_8, kbps_33_6, kbps_56, satellite, isdn, dsl, cable, lan_t1, lan_t3, modem }
	Enumeration of Old ConnectionSpeeds. More...
enum	SearchFileType { any = 1, audio = 2, compressed = 3, documents = 4, executables = 5, pictures = 6, video = 7, folders = 8, tth = 9 }
	Enumeration of File Types used in a search request. More...
Public Member Functions

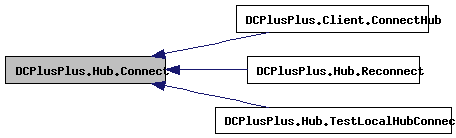

void	Connect ()
	Connect to the hub.
delegate void	ConnectedEventHandler (Hub hub)
	Prototype for the Connected Event Handler.
delegate void	ConnectToMeEventHandler (Hub hub, Peer connection)
	Prototype for the Connect To Me Event Handler.
Hub	Copy ()
	Copy the hub's values into a new hub instance and return it this will not duplicate a connection / socket - only values.

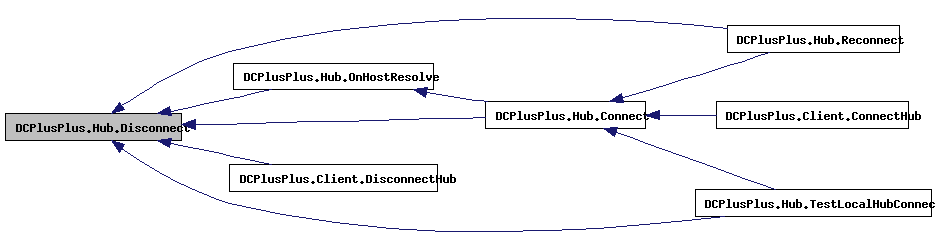

override void	Disconnect ()
	Disconnect the hub.
delegate void	DisconnectedEventHandler (Hub hub)
	Prototype for the Disconnected Event Handler.
void	GetUserInfo (string username)
	Get the info for a specific user this will send GetInfo to the hub (TODO no event for this kind of received data implemented).
	Hub ()
	Hub Constructor this will initialize some values to default.
delegate void	LoggedInEventHandler (Hub hub)
	Prototype for the Logged In Event Handler.
delegate void	MainChatLineReceivedEventHandler (Hub hub, ChatLine line)
	Prototype for the Main Chat Line Received Event Handler.
delegate void	MoveForcedEventHandler (Hub src_hub, Hub dst_hub)
	Prototype for the Move Forced Event Handler.
delegate string	PasswordRequestedEventHandler (Hub hub)
	Prototype for the Password Requested Event Handler.
delegate void	PrivateChatLineReceivedEventHandler (Hub hub, ChatLine line)
	Prototype for the Private Chat Line Received Event Handler.

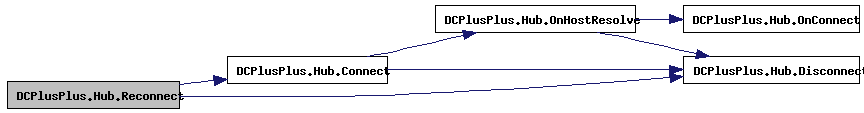

void	Reconnect ()
	Reconnect the hub.
void	Search (string search_tth, bool is_tth)
	Search for a tth on this hub.
void	Search (SearchParameters sp)
	Search for something on this hub.
void	Search (string search_string, bool size_restricted, bool is_max_size, long size, SearchFileType file_type)
	Search for something on this hub.
void	Search (string search_string)
	Search for something on this hub.
delegate void	SearchReceivedEventHandler (Hub hub, SearchParameters search)
	Prototype for the Search Received Event Handler.
void	SearchReply (string result_name, long filesize, SearchParameters search)
	Reply to a search from a user (only used if the connection is passive).
delegate void	SearchResultReceivedEventHandler (Hub hub, SearchResults.SearchResult result)
	Prototype for the Search Result Received Event Handler.
void	SendChatMessage (string message, string username, bool show_in_main_chat)
	Send a private message to a hub user that will be shown in his hub main chat window.
void	SendChatMessage (string message, string username)
	Send a private message to a hub user.
void	SendChatMessage (string message)
	Send a chat message to the hub.
void	SendConnectToMe (string username)
	Send a connection request to a specific user this will automatically select the correct command according to the hubs connection mode.
void	SendConnectToMeV2 (string username)
	Send a connection request to a specific user Version 2 (actually use this for something or at least investigate what this was meant for).
void	SendMyInfo ()
	Send the client information but only if an update is needed.
void	SendPassword (string password)
	Send a password to the hub.

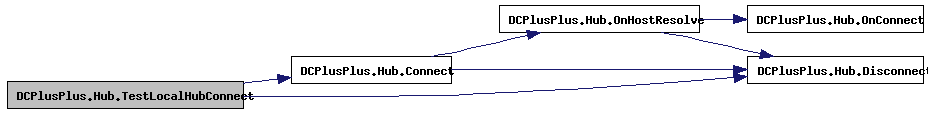

[Test] void	TestLocalHubConnect ()
	Test to connect to a local hub.
delegate void	UnableToConnectEventHandler (Hub hub)
	Prototype for the Unable To Connect Event Handler.
void	Ungrab ()
	Remove the event handlers from the hub.
delegate void	UserJoinedEventHandler (Hub hub, string username)
	Prototype for the User Joined Event Handler.
delegate void	UserQuitEventHandler (Hub hub, string username)
	Prototype for the User Quit Event Handler.
Public Attributes
event ConnectedEventHandler	Connected
	Event handler that gets called when a hub connection was established.
event ConnectToMeEventHandler	ConnectToMeReceived
	Event handler that gets called when connection request was received.
event DisconnectedEventHandler	Disconnected
	Event handler that gets called when a hub was disconnected.
event LoggedInEventHandler	LoggedIn
	Event handler that gets called when the client logged in a hub.
event MainChatLineReceivedEventHandler	MainChatLineReceived
	Event handler that gets called when a chat message was received from a hub.
event MoveForcedEventHandler	MoveForced
	Event handler that gets called when a hub wants us to connect to another hub.
event PasswordRequestedEventHandler	PasswordRequested
	Event handler that gets called when a hub requested a password to use the specified username should return the password if it is known.
event PrivateChatLineReceivedEventHandler	PrivateChatLineReceived
	Event handler that gets called when a private message was received from a hub.
event SearchReceivedEventHandler	SearchReceived
	Event handler that gets called when a search was received (another user wants to find something).
event SearchResultReceivedEventHandler	SearchResultReceived
	Event handler that gets called when a search result was received via the hub connection (passive result).
event UnableToConnectEventHandler	UnableToConnect
	Event handler that gets called when a connection to a hub was unable to be established.
event UserJoinedEventHandler	UserJoined
	Event handler that gets called when a user joined a hub.
event UserQuitEventHandler	UserQuit
	Event handler that gets called when a user was disconnected from a hub.
Protected Attributes
string	address = ""
bool	auto_reconnect = false
List< ChatLine >	chat_history = new List<ChatLine>()
int	chat_history_max_length = 0
string	country = ""
string	description = ""
bool	is_grabbed = false
bool	is_logged_in = false
int	max_hubs = 0
long	max_users = 0
long	min_share = 0
int	min_slots = 0
ConnectionMode	my_connection_mode = ConnectionMode.Passive
string	my_connection_speed = "0.02"
string	my_description = ""
string	my_email = "unknown@unknown.net"
string	my_ip = ""
string	my_name = "c#++"
long	my_share_size = 0
string	my_tag_version = "0.698"
int	my_tcp_port = 0
int	my_udp_port = 0
string	my_version = "1,0091"
string	name = ""
List< string >	op_list = new List<string>()
long	shared = 0
string	topic = ""
List< string >	user_list = new List<string>()
long	users = 0
Properties
string	Address `[get, set]`
	the hub address
bool	AutoReconnect `[get, set]`
	TODO add auto reconnect feature [not implemented].
List< ChatLine >	ChatHistory `[get, set]`
	the chat history of the hub (Todo change this to a enumeration at the moment it can throw list modified exceptions)
int	ChatHistoryMaxLength `[get, set]`
	the maximum chat history length if reached chat lines will be discarded
string	Country `[get, set]`
	the country in which the hubs resides in
string	Description `[get, set]`
	the hub description
bool	IsGrabbedByClient `[get, set]`
	TRUE if a client has added some event handlers to this hub.
bool	IsLoggedIn `[get]`
	TRUE if we are logged into this hub.
int	MaxHubs `[get, set]`
	the maximum number of hubs a client can be connected to to connect to this hub
long	MaxUsers `[get, set]`
	the maximum number of users this hub supports
long	MinShare `[get, set]`
	the minimum amount of shared bytes a client needs to connect to this hub
int	MinSlots `[get, set]`
	the minimum amount of open slots a client needs to connect to this hub
ConnectionMode	MyConnectionMode `[get, set]`
	the connection mode to use on this hub this will decide how to connect to peers active or passive
string	MyConnectionSpeed `[get, set]`
	the connection speed of the client pc to the internet
string	MyDescription `[get, set]`
	the user description
string	MyEmail `[get, set]`
	the email address of the user
string	MyIP `[get, set]`
	set it to the external ip of the client pc it will we used for active connection requests
string	MyName `[get, set]`
	the name of the client
long	MyShareSize `[get, set]`
	the total number of shared bytes by the client
string	MyTagVersion `[get, set]`
	the version of the client that is used in the myinfo tag
int	MyTcpPort `[get, set]`
	the local tcp port used by the client to accept remote connections
int	MyUdpPort `[get, set]`
	the local udp port used by the client to receive udp search results
string	MyVersion `[get, set]`
	the version of the client
string	Name `[get, set]`
	the hub name
List< string >	OperatorList `[get, set]`
	the operators connected to this hub (Todo change this to a enumeration at the moment it can throw list modified exceptions) TODO add operator events and make them more usable as sources
long	Shared `[get, set]`
	the number of shared bytes on the hub
string	Topic `[get]`
	the topic of the hub
List< string >	UserList `[get, set]`
	the users connected to this hub (Todo change this to a enumeration at the moment it can throw list modified exceptions)
long	Users `[get, set]`
	the number of users connected to the hub (as replied from a hublist) TODO support returning of UserList.Count
Private Member Functions
void	AddChatToHistory (string username, string message)
	Add a chat line to the chat history of a hub if the chat history max length is != 0 it will automatically remove the first lines added if needed (FIFO buffer).
void	InterpretCommand (string received_command)
	Interpret a single command.
void	InterpretReceivedString (string received_string)
	Interpret a received string. this will split the string into single commands and call InterpretCommand() with them.

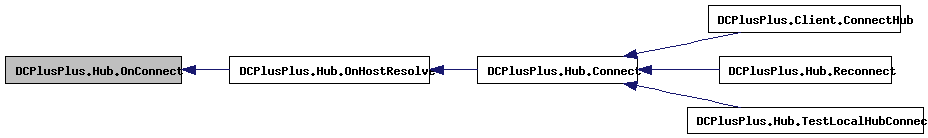

void	OnConnect (IAsyncResult result)
	Callback for hub connecting.

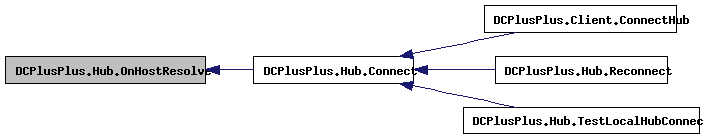

void	OnHostResolve (IAsyncResult result)
	Callback for hostname resolving.
void	OnReceive (IAsyncResult result)
	Callback to receive data from the hub.
void	SendChatMessageCallback (IAsyncResult ar)
	Callback for the send chat command.
void	UserListAdd (string username)
	Add a user to the userlist and fires an user joined event.
void	UserListClear ()
	Clear the userlist this will UserListRemove() them first so a lot of events maybe triggered by this.
void	UserListRemove (string username)
	Remove a user from the userlist and fires an user quit event.
Private Attributes
string	received_string_buffer = ""
	a temporary fifo buffer to fight packet fragmentation and incomplete commands that packet fragmentation introduces
Classes
class	ChatLine
	a single line of chat More...
class	FileParameters
	a filename filesize pair More...
class	SearchParameters
	the parameters needed for a search More...

Detailed Description

a class to manage information and the connection to a single hub

Definition at line 25 of file Hub.cs.

Member Enumeration Documentation

enum DCPlusPlus::Hub::ConnectionMode

Enumeration of all possible connection modes for a hub.

Enumerator:

Active	connection is active
Passive	connection is passive

Definition at line 829 of file Hub.cs.

00830         {
00834             Active,
00838             Passive
00839             //,Socks5
00840         }

enum DCPlusPlus::Hub::ConnectionSpeed

Enumeration of Old ConnectionSpeeds.

Enumerator:

kbps_28_8	use this if you are connected to the internet with an old 28.8k modem
kbps_33_6	use this if you are connected to the internet with an old 33.6k modem
kbps_56	use this if you are connected to the internet with an old 56k modem
satellite	use this if you are connected to the internet via a satellite connection
isdn	use this if you are connected to the internet via isdn
dsl	use this if you are connected to the internet with a dsl modem
cable	use this if you are connected to the internet with a cable modem
lan_t1	use this if you are connected to the internet via a lan connection
lan_t3	use this if you are connected to the internet via a lan connection
modem	use this if you are connected to the internet with a modem

Definition at line 757 of file Hub.cs.

00758         {
00763             kbps_28_8,// = "28.8Kbps",
00768             kbps_33_6,//  = "33.6Kbps",
00773             kbps_56,//  = "56Kbps",
00778             satellite,//  = "Satellite",
00783             isdn,//  = "ISDN",
00788             dsl,//  = "DSL",
00793             cable,//  = "Cable",
00798             lan_t1,//  = "LAN(T1)",
00803             lan_t3,//  = "LAN(T3)",
00808             modem,//  = "Modem"
00809         }

enum DCPlusPlus::Hub::SearchFileType

Enumeration of File Types used in a search request.

Enumerator:

any	Searches for any file.
audio	Searches only for audio files.
compressed	Searches only for archieves.
documents	Searches only for documents.
executables	Searches only for executables.
pictures	Searches only for pictures.
video	Searches only for videos.
folders	Searches only for folders.
tth	Searches only for tths.

Definition at line 1143 of file Hub.cs.

01144         {
01148             any = 1,
01152             audio = 2,
01156             compressed = 3,
01160             documents = 4,
01164             executables = 5,
01168             pictures = 6,
01172             video = 7,
01176             folders = 8,
01180             tth = 9
01181         }

Constructor & Destructor Documentation

DCPlusPlus.Hub.Hub ( )

Hub Constructor this will initialize some values to default.

Definition at line 864 of file Hub.cs.

References DCPlusPlus.Connection.is_connected, DCPlusPlus.Connection.is_connecting, DCPlusPlus.Connection.is_extended_protocol, DCPlusPlus.Hub.is_logged_in, DCPlusPlus.Connection.port, and DCPlusPlus.Connection.socket.

00865         {
00866             is_connecting = false;
00867             is_connected = false;
00868             is_extended_protocol = false;
00869             is_logged_in = false;
00870             socket = null;
00871             port = 411;
00872             //Disconnect();
00873         }

Member Function Documentation

void DCPlusPlus.Hub.AddChatToHistory	(	string	username,
		string	message
	)			`[private]`

Add a chat line to the chat history of a hub if the chat history max length is != 0 it will automatically remove the first lines added if needed (FIFO buffer).

Parameters:

	username	the user who wrote the chat message
	message	the message contents

Definition at line 1327 of file Hub.cs.

01328         {
01329             if (chat_history_max_length != 0)
01330             {//using max history -> delete first line added to list
01331                 if (chat_history.Count > chat_history_max_length)
01332                     chat_history.RemoveAt(0);
01333             }
01334             ChatLine cline = new ChatLine(username, message);
01335             chat_history.Add(cline);
01336             if (MainChatLineReceived != null)
01337                 MainChatLineReceived(this,cline);
01338
01339         }

void DCPlusPlus.Hub.Connect ( )

Connect to the hub.

Definition at line 924 of file Hub.cs.

References DCPlusPlus.Hub.address, DCPlusPlus.Hub.Disconnect(), DCPlusPlus.Connection.error_code, DCPlusPlus.Connection.Exception, DCPlusPlus.Connection.is_connected, DCPlusPlus.Connection.is_connecting, DCPlusPlus.Hub.name, DCPlusPlus.Hub.OnHostResolve(), DCPlusPlus.Connection.socket, and DCPlusPlus.Connection.UserDisconnect.

Referenced by DCPlusPlus.Client.ConnectHub(), DCPlusPlus.Hub.Reconnect(), and DCPlusPlus.Hub.TestLocalHubConnect().

00925         {
00926             if (is_connecting)
00927             {//better handling of fast user retries
00928                 error_code = ErrorCodes.UserDisconnect;
00929                 Disconnect();
00930             }
00931             if (!is_connected)
00932             {
00933                 //Console.WriteLine("Connecting to Hub: "+name);
00934                 try
00935                 {
00936                     is_connecting = true;
00937                     socket = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);
00938                     socket.Blocking = false;
00939                     AsyncCallback event_host_resolved = new AsyncCallback(OnHostResolve);
00940                     Dns.BeginGetHostEntry(address, event_host_resolved, socket);
00941                     //IPEndPoint endpoint = new IPEndPoint(IPAddress.Parse(address),port);
00942                     //IPHostEntry ip = Dns.GetHostEntry(address);
00943                 }
00944                 catch (Exception ex)
00945                 {
00946                     error_code = ErrorCodes.Exception;
00947                     Console.WriteLine("Error connecting to Hub: " + name + "(exception:" + ex.Message + ")");
00948                     Disconnect();
00949                 }
00950             }
00951         }

Here is the call graph for this function:

Here is the caller graph for this function:

delegate void DCPlusPlus.Hub.ConnectedEventHandler ( Hub hub )

Prototype for the Connected Event Handler.

Parameters:

hub

the hub we connected to

delegate void DCPlusPlus.Hub.ConnectToMeEventHandler	(	Hub	hub,
		Peer	connection
	)

Prototype for the Connect To Me Event Handler.

Parameters:

	hub	the hub on which the request was issued on
	connection	the connection endpoint information

Hub DCPlusPlus.Hub.Copy ( )

Copy the hub's values into a new hub instance and return it this will not duplicate a connection / socket - only values.

Returns:: a new hub instance containing all values of the original hub

Definition at line 1733 of file Hub.cs.

References DCPlusPlus.Hub.address, DCPlusPlus.Hub.auto_reconnect, DCPlusPlus.Hub.Connected, DCPlusPlus.Hub.country, DCPlusPlus.Hub.description, DCPlusPlus.Hub.Disconnected, DCPlusPlus.Connection.ip, DCPlusPlus.Connection.is_connected, DCPlusPlus.Connection.is_connecting, DCPlusPlus.Connection.is_extended_protocol, DCPlusPlus.Hub.is_grabbed, DCPlusPlus.Hub.is_logged_in, DCPlusPlus.Hub.LoggedIn, DCPlusPlus.Hub.max_hubs, DCPlusPlus.Hub.max_users, DCPlusPlus.Hub.min_share, DCPlusPlus.Hub.min_slots, DCPlusPlus.Hub.MoveForced, DCPlusPlus.Hub.my_connection_mode, DCPlusPlus.Hub.my_connection_speed, DCPlusPlus.Hub.my_email, DCPlusPlus.Hub.my_ip, DCPlusPlus.Hub.my_name, DCPlusPlus.Hub.my_share_size, DCPlusPlus.Hub.my_tag_version, DCPlusPlus.Hub.my_tcp_port, DCPlusPlus.Hub.my_udp_port, DCPlusPlus.Hub.my_version, DCPlusPlus.Hub.name, DCPlusPlus.Connection.nick, DCPlusPlus.Hub.op_list, DCPlusPlus.Connection.port, DCPlusPlus.Hub.SearchResultReceived, DCPlusPlus.Hub.shared, DCPlusPlus.Hub.topic, DCPlusPlus.Hub.UnableToConnect, DCPlusPlus.Hub.user_list, DCPlusPlus.Hub.UserJoined, DCPlusPlus.Hub.UserList, DCPlusPlus.Hub.UserQuit, and DCPlusPlus.Hub.users.

01734         {
01735             Hub ret = new Hub();
01736             ret.address = this.address;
01737             ret.auto_reconnect = this.auto_reconnect;
01738             ret.country = this.country;
01739             ret.description = this.description;
01740             ret.ip = this.ip;
01741             ret.is_connecting = false;
01742             ret.is_connected = false;
01743             ret.is_extended_protocol = false;
01744             ret.is_grabbed = this.is_grabbed;
01745             ret.is_logged_in = false;
01746             ret.Connected = this.Connected;
01747             ret.Disconnected = this.Disconnected;
01748             ret.UnableToConnect = this.UnableToConnect;
01749             ret.LoggedIn = this.LoggedIn;
01750             ret.SearchResultReceived = this.SearchResultReceived;
01751             ret.UserJoined = this.UserJoined;
01752             ret.UserQuit = this.UserQuit;
01753             ret.MoveForced = this.MoveForced;
01754             ret.max_hubs = 0;
01755             ret.max_users = 0;
01756             ret.min_share = 0;
01757             ret.min_slots = 0;
01758             ret.my_connection_mode = this.my_connection_mode;
01759             ret.my_connection_speed = this.my_connection_speed;
01760             ret.my_email = this.my_email;
01761             ret.my_ip = this.my_ip;
01762             ret.my_name = this.my_name;
01763             ret.my_share_size = this.my_share_size;
01764             ret.my_tag_version = this.my_tag_version;
01765             ret.my_tcp_port = this.my_tcp_port;
01766             ret.my_udp_port = this.my_udp_port;
01767             ret.my_version = this.my_version;
01768             ret.name = this.name;
01769             ret.nick = this.nick;
01770             ret.op_list = new List<string>();
01771             ret.port = this.port;
01772             ret.shared = 0;
01773             ret.topic = this.topic;
01774             ret.user_list = new List<string>();
01775             ret.UserList = new List<string>();
01776             ret.users = 0;
01777             return (ret);
01778         }

override void DCPlusPlus.Hub.Disconnect ( ) [virtual]

Disconnect the hub.

Implements DCPlusPlus.Connection.

Definition at line 885 of file Hub.cs.

References DCPlusPlus.Hub.Disconnected, DCPlusPlus.Connection.error_code, DCPlusPlus.Connection.Exception, DCPlusPlus.Connection.is_connected, DCPlusPlus.Connection.is_connecting, DCPlusPlus.Connection.is_extended_protocol, DCPlusPlus.Hub.is_logged_in, DCPlusPlus.Hub.name, DCPlusPlus.Connection.socket, and DCPlusPlus.Hub.UnableToConnect.

Referenced by DCPlusPlus.Hub.Connect(), DCPlusPlus.Client.DisconnectHub(), DCPlusPlus.Hub.OnHostResolve(), DCPlusPlus.Hub.Reconnect(), and DCPlusPlus.Hub.TestLocalHubConnect().

00886         {
00887             if (is_connected || is_connecting)
00888             {
00889                 try
00890                 {
00891                     if (socket != null && socket.Connected)
00892                     {
00893                         //if(receive_operation!=null) socket //socket.EndReceive(receive_operation);
00894                         socket.Shutdown(SocketShutdown.Both);
00895                         //Thread.Sleep(10);
00896                         socket.Close();
00897                         socket = null;
00898                         //receive_operation = null;
00899                     }
00900                     if (is_connected)
00901                     {
00902                         if (Disconnected != null)
00903                             Disconnected(this);
00904                     }else if (is_connecting)
00905                     {
00906                         if (UnableToConnect != null)
00907                             UnableToConnect(this);
00908                     }
00909                     is_connecting = false;
00910                     is_connected = false;
00911                     is_extended_protocol = false;
00912                     is_logged_in = false;
00913                 }
00914                 catch (Exception ex)
00915                 {
00916                     Console.WriteLine("Error disconnecting Hub: " + name + "(exception:" + ex.Message + ")");
00917                     error_code = ErrorCodes.Exception;
00918                 }
00919             }
00920         }

Here is the caller graph for this function:

delegate void DCPlusPlus.Hub.DisconnectedEventHandler ( Hub hub )

Prototype for the Disconnected Event Handler.

Parameters:

hub

the hub that was disconnected

void DCPlusPlus.Hub.GetUserInfo ( string username )

Get the info for a specific user this will send GetInfo to the hub (TODO no event for this kind of received data implemented).

Parameters:

username

the user from which to get info from

Definition at line 1278 of file Hub.cs.

01279         {//TODO finish this
01280
01281             SendCommand("GetInfo",username+" "+nick);
01282         }

void DCPlusPlus.Hub.InterpretCommand ( string received_command ) [private]

Interpret a single command.

Parameters:

received_command

the command to interpret

Definition at line 1446 of file Hub.cs.

References DCPlusPlus.Hub.SearchParameters.file_type, DCPlusPlus.Hub.SearchParameters.ip, DCPlusPlus.Hub.SearchParameters.is_max_size, DCPlusPlus.Hub.SearchParameters.mode, DCPlusPlus.Hub.SearchParameters.port, DCPlusPlus.Hub.SearchParameters.search_string, DCPlusPlus.Hub.SearchParameters.size, DCPlusPlus.Hub.SearchParameters.size_restricted, DCPlusPlus.Hub.SearchParameters.tth, and DCPlusPlus.Hub.SearchParameters.username.

01447         {
01448             int command_end = received_command.IndexOf(" ");
01449             if (command_end == -1) command_end = received_command.Length;
01450
01451             if (command_end != -1)
01452             {
01453                 string parameter = "";
01454                 string[] parameters ={ };
01455                 string command = received_command.Substring(1);
01456                 if (command_end != received_command.Length)
01457                 {
01458                     command = received_command.Substring(1, command_end - 1);
01459                     parameter = received_command.Substring(command_end + 1);
01460                     parameters = parameter.Split(" ".ToCharArray(), StringSplitOptions.RemoveEmptyEntries);
01461                     //Console.WriteLine("Command: '" + command + "' ,Parameter(" + parameters.Length + "): '" + parameter + "'");
01462                 }
01463                 switch (command)
01464                 {
01465                     case "HubName" :
01466                         //Console.WriteLine("Hubname Command received: " + parameter);
01467                         name = parameter;
01468                         //fire nameChange event
01469                         break;
01470
01471                     case "Hello" :
01472                         //Console.WriteLine("Hello Command received: " + parameters[0]);
01473                         if (!is_logged_in)
01474                         {
01475                             is_logged_in = true;
01476                             SendCommand("Version", my_version);
01477                             SendCommand("GetNickList");
01478                             SendMyInfo();
01479                             //Console.WriteLine("Logged in Hub: "+name);
01480                             try
01481                             {
01482                                 if (LoggedIn != null)
01483                                     LoggedIn(this);
01484                             }
01485                             catch (Exception ex)
01486                             {
01487                                 Console.WriteLine("Exception in LoggedIn: " + ex.Message);
01488                             }
01489                         }
01490                         else
01491                         {//new user announced by server
01492                             //Console.WriteLine("User "+parameters[0]+" has joined Hub: "+name);
01493                             UserListAdd(parameters[0]);
01494                         }
01495                         break;
01496
01497                     case "Quit":
01498                         //Console.WriteLine("User "+parameters[0]+" has left Hub: "+name);
01499                         UserListRemove(parameters[0]);
01500                         break;
01501
01502                     case "NickList":
01503                         Console.WriteLine("NickList Message received.");
01504                         UserListClear();
01505                         string[] temp_users = parameters[0].Split("$$".ToCharArray(), StringSplitOptions.RemoveEmptyEntries);
01506                         foreach (string temp_user in temp_users)
01507                         {
01508                             UserListAdd(temp_user);
01509                         }
01510                         break;
01511
01512                     case "OpList":
01513                         op_list.Clear();
01514                         string[] temp_ops = parameters[0].Split("$$".ToCharArray(), StringSplitOptions.RemoveEmptyEntries);
01515                         foreach (string temp_op in temp_ops)
01516                         {
01517                             op_list.Add(temp_op);
01518                         }
01519                         break;
01520
01521                     case "ConnectToMe":
01522                             try
01523                             {
01524                                 string peer_address = "";
01525                                 if (parameters.Length == 2)
01526                                 {
01527                                     peer_address = parameters[1];
01528                                 }
01529                                 else if (parameters.Length == 3)
01530                                 {
01531                                     peer_address = parameters[2];
01532                                 }
01533                                 else break;
01534                                 Peer peer = new Peer(peer_address); //add username also, to counter possible network attacks
01535                                 if (ConnectToMeReceived != null)
01536                                     ConnectToMeReceived(this, peer);
01537                             }
01538                             catch (Exception ex)
01539                             {
01540                                 Console.WriteLine("Exception in ConnectToMe EventHandler: " + ex.Message);
01541                             }
01542                         break;
01543
01544                     case "RevConnectToMe":
01545                         SendConnectToMe(parameters[0]);
01546                         break;
01547
01548                     case "HubTopic":
01549                         //topic = parameters[0];
01550                         topic = parameter;
01551                         break;
01552
01553                     case "UserCommand":
01554                         //Console.WriteLine("User Command received: "+parameter);
01555                         //TODO support user context menu entries
01556                         break;
01557
01558                     case "Search":
01559                         //Console.WriteLine("Search Command received: "+parameter);
01560                         SearchParameters search = new SearchParameters();
01561                         if(parameters[0].StartsWith("Hub:"))
01562                         {
01563                             search.mode = ConnectionMode.Passive;
01564                             int username_start = parameters[0].IndexOf(":");
01565                             if (username_start == -1 || username_start + 1 > parameters[0].Length) break;
01566                             search.username = parameters[0].Substring(username_start + 1);
01567                         }
01568                         else
01569                         {
01570                             search.mode = ConnectionMode.Active;
01571                             int port_start = parameters[0].IndexOf(":");
01572                             if (port_start == -1 || port_start + 1 > parameters[0].Length) break;
01573                             search.ip = parameters[0].Substring(0,port_start);
01574                             try
01575                             {
01576                                 search.port = int.Parse(parameters[0].Substring(port_start + 1));
01577                             }
01578                             catch (Exception ex)
01579                             {
01580                                 Console.WriteLine("error parsing port in search: " + ex.Message);
01581                                 break;
01582                             }
01583                         }
01584
01585                         char[] seps ={ '?' };
01586                         string[] search_parameters = parameters[1].Split(seps,StringSplitOptions.RemoveEmptyEntries);
01587                         if (search_parameters.Length < 4) break;
01588                         if (search_parameters[0] == "F")
01589                             search.size_restricted = false;
01590                         else search.size_restricted = true;
01591                         if (search_parameters[1] == "F")
01592                             search.is_max_size = false;
01593                         else search.is_max_size = true;
01594                         try
01595                         {
01596                             search.size = long.Parse(search_parameters[2]);
01597                             search.file_type = (SearchFileType)int.Parse(search_parameters[3]);
01598                         }
01599                         catch (Exception ex)
01600                         {
01601                             Console.WriteLine("error parsing ints in search: " + ex.Message);
01602                             break;
01603                         }
01604                         if (search_parameters[4].StartsWith("TTH:") && search.file_type == SearchFileType.tth)
01605                             search.tth = search_parameters[4].Substring(4);
01606                         else search.search_string = search_parameters[4];
01607
01608                         if (SearchReceived != null)
01609                             SearchReceived(this,search);
01610                         break;
01611
01612                     case "Supports":
01613                         supports = (string[])parameters.Clone();
01614                         break;
01615
01616                     case "UserIP":
01617                         Console.WriteLine("UserIP Message received: " + parameter);
01618                         break;
01619
01620                     case "MCTo:":
01621                         string mcto_username = parameters[1].Substring(1); //to skip the leading $
01622                         int mcto_message_start = parameters[0].Length + parameters[1].Length + 2;
01623                         if (mcto_message_start < parameter.Length)
01624                         {
01625                             string mcto_message = parameter.Substring(mcto_message_start);
01626                             AddChatToHistory(mcto_username, mcto_message);
01627                         }
01628                         break;
01629
01630                     case "To:":
01631                         //Console.WriteLine("Private Message received: " + parameter);
01632                         string to_username = parameters[2];
01633                         int to_message_start = parameters[0].Length + parameters[1].Length + parameters[2].Length + parameters[3].Length + 4;
01634                         if (to_message_start < parameter.Length )
01635                         {
01636                             string to_message = parameter.Substring(to_message_start);
01637                             ChatLine to_message_line = new ChatLine(to_username, to_message);
01638                             if (PrivateChatLineReceived != null)
01639                                 PrivateChatLineReceived(this, to_message_line);
01640                         }
01641                         break;
01642
01643                     case "SR":
01644                         //Console.WriteLine("Search result received: " + parameter);
01645                         SearchResults.SearchResult result = new SearchResults.SearchResult();
01646                         result.ResultLine = parameter;
01647                         try
01648                         {
01649                             if (SearchResultReceived != null)
01650                                 SearchResultReceived(this, result);
01651                         }
01652                         catch (Exception ex)
01653                         {
01654                             Console.WriteLine("Exception in event handler: " + ex.Message);
01655                         }
01656
01657                         break;
01658
01659                     case "LogedIn":
01660                         Console.WriteLine("LogedIn Message received: " + parameter);
01661                         //what the hell is this and who forgot to take some english lessons ?
01662                         break;
01663                     case "MyINFO":
01664                         //Console.WriteLine("MyINFO Message received: " + parameter);
01665                         UserListAdd(parameters[1]);
01666                         break;
01667                     case "GetPass":
01668                         Console.WriteLine("GetPass Message received: " + parameter);
01669                         if (PasswordRequested != null)
01670                         {
01671                             string password = PasswordRequested(this);
01672                             SendPassword(password);
01673                         }
01674                         break;
01675
01676                     case "ForceMove":
01677                         //Console.WriteLine("FORCE MOVE NOT IMPLEMENTED");
01678                         if (MoveForced != null)
01679                         {
01680                             Hub dst_hub = this.Copy();
01681                             MoveForced(this, dst_hub);
01682                         }
01683                         break;
01684
01685                     case "ValidateDenide":
01686                         Console.WriteLine("Nick: "+parameters[0]+" on Hub: " + name + " is already in use.");
01687                         break;
01688
01689                     case "HubIsFull":
01690                         Console.WriteLine("Hub: " + name + " is full.");
01691                         Disconnect();
01692                         break;
01693
01694                     case "Lock" :
01695                         //Console.WriteLine("Lock Command received: "+parameter);
01696                         //int key_end = parameter.IndexOf(" ");
01697                         //if (key_end != -1)
01698                         //{
01699                             //string key = parameter.Substring(0, key_end);
01700                         if (parameters.Length > 1)
01701                         {
01702                             string key = parameters[0];
01703                             //Console.WriteLine("Key: " + key);
01704                             if (key.StartsWith("EXTENDEDPROTOCOL"))
01705                             {
01706                                 is_extended_protocol = true;
01707                                 //Console.WriteLine("Hub is using the dc++ protocol enhancements.");
01708                                 //SendCommand("Supports", "UserCommand NoGetINFO NoHello UserIP2 TTHSearch ZPipe0 GetZBlock ");
01709                                 SendCommand("Supports", "UserCommand TTHSearch NoGetINFO NoHello ");
01710                             }
01711
01712                             //string decoded_key = MyLockToKey(key);
01713                             string decoded_key = L2K(key);
01714                             //Console.WriteLine("Decoded key: " + decoded_key);
01715                             SendCommand("Key" , decoded_key);
01716                             SendCommand("ValidateNick", nick);
01717
01718
01719                         }
01720                         break;
01721                     default:
01722                         Console.WriteLine("Unknown Command received: " + command + ", Parameter: " + parameter);
01723                         break;
01724                 }
01725             }
01726             else Console.WriteLine("Error interpreting command: " + received_command);
01727         }

void DCPlusPlus.Hub.InterpretReceivedString ( string received_string ) [private]

Interpret a received string. this will split the string into single commands and call InterpretCommand() with them.

Parameters:

received_string

the data received from the hub

Definition at line 1401 of file Hub.cs.

01402         {
01403             // possible strings
01404             //$command|
01405             //<chat>
01406             //|
01407             received_string_buffer += received_string;
01408             //if (received_string_buffer.IndexOf("|") == -1) return;//incomplete command
01409             int last_command_marker = received_string_buffer.LastIndexOf("|");
01410             if (last_command_marker != -1)
01411             {
01412                 string command_strings = received_string_buffer.Substring(0, last_command_marker);
01413
01414                 //received_string_buffer = received_string_buffer.Substring(last_command_marker);
01415                 received_string_buffer = received_string_buffer.Remove(0, last_command_marker);
01416                 string[] received_strings = command_strings.Split("|".ToCharArray(), StringSplitOptions.RemoveEmptyEntries);
01417                 for (int i = 0; i < received_strings.Length; i++)
01418                 {
01419                     if (received_strings[i].StartsWith("<"))
01420                     {
01421                         int user_end_marker = received_strings[i].IndexOf(">");
01422                         if (user_end_marker != -1)
01423                         {
01424                             string user = received_strings[i].Substring(1, user_end_marker - 1);
01425                             string message = "";
01426                             if ((user_end_marker + 1) < received_strings[i].Length)
01427                                 message = received_strings[i].Substring(user_end_marker+1);
01428                             AddChatToHistory(user, message);
01429                         }
01430                         else Console.WriteLine("Received a wrong chat line: " + received_strings[i]);
01431                         //Console.WriteLine("chat message on hub: " + name + " - " + received_strings[i]);
01432                     }
01433                     else
01434                     {
01435                         if (received_strings[i].StartsWith("$")) InterpretCommand(received_strings[i]);
01436                         //else Console.WriteLine("Received a non command line: " + received_strings[i]);
01437                     }
01438                 }
01439             }
01440
01441         }

delegate void DCPlusPlus.Hub.LoggedInEventHandler ( Hub hub )

Prototype for the Logged In Event Handler.

Parameters:

hub

the hub that you successfully logged in

delegate void DCPlusPlus.Hub.MainChatLineReceivedEventHandler	(	Hub	hub,
		ChatLine	line
	)

Prototype for the Main Chat Line Received Event Handler.

Parameters:

	hub	the hub on which the chat was send
	line	the chat line received

delegate void DCPlusPlus.Hub.MoveForcedEventHandler	(	Hub	src_hub,
		Hub	dst_hub
	)

Prototype for the Move Forced Event Handler.

Parameters:

	src_hub	the hub that wants us to move
	dst_hub	the destination the source hub has suggested

void DCPlusPlus.Hub.OnConnect ( IAsyncResult result ) [private]

Callback for hub connecting.

Parameters:

result

Async Result/State

Definition at line 1005 of file Hub.cs.

Referenced by DCPlusPlus.Hub.OnHostResolve().

01006         {
01007             Socket connect_socket = (Socket)result.AsyncState;
01008             try
01009             {
01010                 if (connect_socket.Connected)
01011                 {
01012                     AsyncCallback event_receive = new AsyncCallback(OnReceive);
01013                     receive_buffer = new byte[32768];
01014                     connect_socket.BeginReceive(receive_buffer, 0, receive_buffer.Length, SocketFlags.None, event_receive, connect_socket);
01015                     //Console.WriteLine("Successfully connected to Hub: " + name);
01016                     try
01017                     {
01018                         if (Connected != null)
01019                             Connected(this);
01020                     }
01021                     catch (Exception ex)
01022                     {
01023                         error_code = ErrorCodes.Exception;
01024                         Console.WriteLine("Exception in Connected event: " + ex.Message);
01025                         Disconnect();
01026                     }
01027                     is_connecting = false;
01028                     is_connected = true;
01029                 }
01030                 else
01031                 {
01032                     error_code = ErrorCodes.UnableToConnect;
01033                     Console.WriteLine("Unable to connect to server: " + name);
01034                     Disconnect();
01035                 }
01036
01037             }
01038             catch (Exception ex)
01039             {
01040                 error_code = ErrorCodes.Exception;
01041                 Console.WriteLine("Error during connect to Hub: " + name + "(exception:" + ex.Message + ")");
01042                 Disconnect();
01043             }
01044         }

Here is the caller graph for this function:

void DCPlusPlus.Hub.OnHostResolve ( IAsyncResult result ) [private]

Callback for hostname resolving.

Parameters:

result

Async Result/State

Definition at line 956 of file Hub.cs.

References DCPlusPlus.Hub.address, DCPlusPlus.Hub.Disconnect(), DCPlusPlus.Connection.error_code, DCPlusPlus.Connection.ip, DCPlusPlus.Hub.name, DCPlusPlus.Hub.OnConnect(), DCPlusPlus.Connection.port, DCPlusPlus.Connection.socket, and DCPlusPlus.Connection.UnableToConnect.

Referenced by DCPlusPlus.Hub.Connect().

00957         {
00958             Socket resolve_socket = (Socket)result.AsyncState;
00959             try
00960             {
00961                     IPHostEntry ip_entry = Dns.EndGetHostEntry(result);
00962                     if (ip_entry != null && ip_entry.AddressList.Length > 0)
00963                     {
00964                         ip = ip_entry.AddressList[0].ToString(); // correct the ip string
00965                         IPEndPoint endpoint = new IPEndPoint(ip_entry.AddressList[0], port);
00966                         AsyncCallback event_connect = new AsyncCallback(OnConnect);
00967                         socket.BeginConnect(endpoint, event_connect, socket);
00968                     }
00969                     else
00970                     {
00971                         Console.WriteLine("Unable to connect to server: " + name + "(address:" + address + ")");
00972                         error_code = ErrorCodes.UnableToConnect;
00973                         Disconnect();
00974                     }
00975
00976             }
00977
00978             catch (SocketException sex)
00979             {
00980                 if (sex.ErrorCode == 11001) //TODO i know , or correctly i dont know ...
00981                 {
00982                     error_code = ErrorCodes.UnableToConnect;
00983                     Console.WriteLine("Error during Address resolve of Hub: " + name + "(address:" + address + ")");
00984                     Disconnect();
00985                 }
00986                 else
00987                 {
00988                     error_code = ErrorCodes.UnableToConnect;
00989                     Console.WriteLine("Error during Address resolve of Hub: " + name + "(address:" + address + ")");
00990                     Disconnect();
00991                 }
00992
00993             }
00994             catch (Exception ex)
00995             {
00996                 error_code = ErrorCodes.Exception;
00997                 Console.WriteLine("Error during Address resolve of Hub: " + name + "(address:" + address +",exception:"+ex.Message+")");
00998                 Disconnect();
00999             }
01000         }

Here is the call graph for this function:

Here is the caller graph for this function:

void DCPlusPlus.Hub.OnReceive ( IAsyncResult result ) [private]

Callback to receive data from the hub.

Parameters:

result

Async Result/State

Definition at line 1049 of file Hub.cs.

01050         {
01051             Socket receive_socket = (Socket)result.AsyncState;
01052             if (!receive_socket.Connected) return;//TODO change to disconnect();
01053             try
01054             {
01055                 int received_bytes = receive_socket.EndReceive(result);
01056                 if (received_bytes > 0)
01057                 {
01058                     //string received_string = Encoding.ASCII.GetString(receive_buffer, 0, received_bytes);
01059                     string received_string = System.Text.Encoding.Default.GetString(receive_buffer, 0, received_bytes);
01060                     //Console.WriteLine("Received a string: "+received_string);
01061                     //interpret string and act accordingly
01062                     InterpretReceivedString(received_string);
01063                     AsyncCallback event_receive = new AsyncCallback(OnReceive);
01064                     receive_socket.BeginReceive(receive_buffer, 0, receive_buffer.Length, SocketFlags.None, event_receive, receive_socket);
01065                 }
01066                 else
01067                 {
01068                     Disconnect();
01069                 }
01070
01071             }
01072             catch (Exception ex)
01073             {
01074                 error_code = ErrorCodes.Exception;
01075                 Console.WriteLine("Error receiving data from Hub: " + name + "(exception:" + ex.Message + ")");
01076                 Disconnect();
01077             }
01078
01079         }

delegate string DCPlusPlus.Hub.PasswordRequestedEventHandler ( Hub hub )

Prototype for the Password Requested Event Handler.

Parameters:

hub

the hub which asks for a password

delegate void DCPlusPlus.Hub.PrivateChatLineReceivedEventHandler	(	Hub	hub,
		ChatLine	line
	)

Prototype for the Private Chat Line Received Event Handler.

Parameters:

	hub	the hub on which the private message was send
	line	the private message

void DCPlusPlus.Hub.Reconnect ( )

Reconnect the hub.

Definition at line 877 of file Hub.cs.

References DCPlusPlus.Hub.Connect(), and DCPlusPlus.Hub.Disconnect().

00878         {
00879             Disconnect();
00880             Connect();
00881         }

Here is the call graph for this function:

void DCPlusPlus.Hub.Search	(	string	search_tth,
		bool	is_tth
	)

Search for a tth on this hub.

Parameters:

	search_tth	the tth to search for
	is_tth	Must be TRUE,or else a normal search would be started

Definition at line 1236 of file Hub.cs.

01237         {
01238             if (!is_tth)
01239                 Search(search_tth);
01240             else
01241             {
01242                 Search("TTH:" + search_tth,false,false,0,SearchFileType.tth);
01243             }
01244         }

void DCPlusPlus.Hub.Search ( SearchParameters sp )

Search for something on this hub.

Parameters:

all search parameters in one single parameter

Definition at line 1227 of file Hub.cs.

References DCPlusPlus.Hub.SearchParameters.file_type, DCPlusPlus.Hub.SearchParameters.is_max_size, DCPlusPlus.Hub.SearchParameters.search_string, DCPlusPlus.Hub.SearchParameters.size, and DCPlusPlus.Hub.SearchParameters.size_restricted.

01228         {
01229             Search(sp.search_string, sp.size_restricted, sp.is_max_size, sp.size, sp.file_type);
01230         }

void DCPlusPlus.Hub.Search	(	string	search_string,
		bool	size_restricted,
		bool	is_max_size,
		long	size,
		SearchFileType	file_type
	)

Search for something on this hub.

Parameters:

	search_string	the term you want to search for
	size_restricted	TRUE if you want to restrict your search to a specific size range
	is_max_size	TRUE if you want to size restrict your search to a max size
	size	the size you want to use in your size resstriction,only used if size_restricted is set to TRUE
	file_type	the specific filetype to search for ,default will be ANY

Definition at line 1198 of file Hub.cs.

01199         {
01200             //"Search Hub:[DE]Test F?F?0?1?extras"
01201             //string send_string = "<" + nick + "> " + message + "|";
01202             string parameter = "";
01203             if (my_connection_mode == ConnectionMode.Active)
01204             {
01205                 parameter = my_ip + ":" + my_udp_port.ToString() + " ";
01206             }
01207             else if (my_connection_mode == ConnectionMode.Passive)
01208                 {
01209                     parameter = "Hub:" + nick + " ";
01210                 }
01211                 if (size_restricted)
01212                     parameter += "T?";
01213                 else parameter += "F?";
01214                 if (is_max_size)
01215                     parameter += "T?";
01216                 else parameter += "F?";
01217
01218             parameter += size.ToString()+"?";
01219             parameter += ((int)file_type).ToString()+"?";
01220             parameter += search_string.Replace(' ','$');
01221             SendCommand("Search",parameter);
01222         }

void DCPlusPlus.Hub.Search ( string search_string )

Search for something on this hub.

Parameters:

search_string

the term you want to search for

Definition at line 1186 of file Hub.cs.

01187         {
01188             Search(search_string,false,false,0,SearchFileType.any);
01189         }

delegate void DCPlusPlus.Hub.SearchReceivedEventHandler	(	Hub	hub,
		SearchParameters	search
	)

Prototype for the Search Received Event Handler.

Parameters:

	hub	the hub on which the search was issued
	search	the search parameters received

void DCPlusPlus.Hub.SearchReply	(	string	result_name,
		long	filesize,
		SearchParameters	search
	)

Reply to a search from a user (only used if the connection is passive).

Parameters:

	result_name	the filename of the share found
	filesize	the filesize of the share
	search	a whole lot of parameters of the search initiated by a remote user (including ip and port,which we will need here)

Definition at line 1252 of file Hub.cs.

References DCPlusPlus.Hub.SearchParameters.HasTTH, DCPlusPlus.Hub.SearchParameters.mode, DCPlusPlus.Hub.SearchParameters.tth, and DCPlusPlus.Hub.SearchParameters.username.

Referenced by DCPlusPlus.Client.ConnectHub().

01253         {
01254             if (search.mode == ConnectionMode.Passive)
01255             {
01256                 string temp_hub = name;
01257                 if (search.HasTTH) temp_hub = "TTH:" + search.tth;
01258                 string reply_parameter = nick + " " + result_name + (char)0x05 + filesize + " 1/1" + (char)0x05 + temp_hub + " (" + ip + ":" + port + ")" + (char)0x05 + search.username;
01259                 Console.WriteLine("Replying to passive search: " + reply_parameter);
01260                 SendCommand("SR", reply_parameter);
01261             }
01262         }

Here is the caller graph for this function:

delegate void DCPlusPlus.Hub.SearchResultReceivedEventHandler	(	Hub	hub,
		SearchResults.SearchResult	result
	)

Prototype for the Search Result Received Event Handler.

Parameters:

	hub	the hub on which the search result was found
	result	the search result received

void DCPlusPlus.Hub.SendChatMessage	(	string	message,
		string	username,
		bool	show_in_main_chat
	)

Send a private message to a hub user that will be shown in his hub main chat window.

Parameters:

	message	the message to send
	username	to which user you want to send it
	show_in_main_chat	must be set to TRUE

Definition at line 1134 of file Hub.cs.

01135         {
01136             if (show_in_main_chat)
01137                 SendCommand("MCTo: " + username + " $" + nick + " " + message);
01138             else SendChatMessage(message, username);
01139         }

void DCPlusPlus.Hub.SendChatMessage	(	string	message,
		string	username
	)

Send a private message to a hub user.

Parameters:

	message	the message to send
	username	to which user you want to send it

Definition at line 1123 of file Hub.cs.

01124         {
01125             SendCommand("To: " + username + " From: " + nick + " $<" + nick + "> " + message);
01126         }

void DCPlusPlus.Hub.SendChatMessage ( string message )

Send a chat message to the hub.

Parameters:

message

the message you want to tell the other hub users

Definition at line 1084 of file Hub.cs.

01085         {
01086             string send_string = "<" + nick + "> " + message + "|";
01087             try
01088             {
01089                 //socket.Send(Encoding.UTF8.GetBytes(send_string), SocketFlags.None);
01090                 byte[] send_bytes = System.Text.Encoding.Default.GetBytes(send_string);
01091                 socket.BeginSend(send_bytes, 0, send_bytes.Length, SocketFlags.None, new AsyncCallback(SendChatMessageCallback), socket);
01092             }
01093             catch (Exception e)
01094             {
01095                 error_code = ErrorCodes.Exception;
01096                 Console.WriteLine("Error sending chat message to Hub: " + name + "(exception:" + e.Message + ")");
01097                 Disconnect();
01098             }
01099         }

void DCPlusPlus.Hub.SendChatMessageCallback ( IAsyncResult ar ) [private]

Callback for the send chat command.

Parameters:

Async Result/State

Definition at line 1104 of file Hub.cs.

01105         {
01106             Socket send_chat_message_socket = (Socket)ar.AsyncState;
01107             try
01108             {
01109                 int bytes = send_chat_message_socket.EndSend(ar);
01110             }
01111             catch (Exception ex)
01112             {
01113                 error_code = ErrorCodes.Exception;
01114                 Console.WriteLine("Error during sending chat message to Hub: " + name + "(exception:" + ex.Message + ")");
01115                 Disconnect();
01116             }
01117         }

void DCPlusPlus.Hub.SendConnectToMe ( string username )

Send a connection request to a specific user this will automatically select the correct command according to the hubs connection mode.

Parameters:

username

the user to connect to

Definition at line 1289 of file Hub.cs.

Referenced by DCPlusPlus.Client.GetFileList().

01290         {
01291             if (my_connection_mode == ConnectionMode.Active)
01292                 SendCommand("ConnectToMe", username + " " + my_ip + ":" + my_tcp_port);
01293             else SendCommand("RevConnectToMe",nick + " " + username);
01294         }

Here is the caller graph for this function:

void DCPlusPlus.Hub.SendConnectToMeV2 ( string username )

Send a connection request to a specific user Version 2 (actually use this for something or at least investigate what this was meant for).

Parameters:

username

the user to connect to

Definition at line 1300 of file Hub.cs.

01301         {
01302             SendCommand("ConnectToMe", nick + " " + username + " " + my_ip + ":" + my_tcp_port);
01303         }

void DCPlusPlus.Hub.SendMyInfo ( )

Send the client information but only if an update is needed.

Definition at line 1307 of file Hub.cs.

01308         {
01309             string temp_connection_mode = "";
01310             //check if info changed and a myinfo command is actually needed
01311             if (my_connection_mode == Hub.ConnectionMode.Active) temp_connection_mode = "A";
01312             else if (my_connection_mode == Hub.ConnectionMode.Passive) temp_connection_mode = "P";
01313             //else if (my_connection_mode == Hub.ConnectionMode.Socks5) temp_connection_mode = "5";
01314             //SendCommand("MyINFO", "$ALL " + parameters[0] + " <" + my_name + " V:" + my_tag_version + ",M:" + temp_connection_mode + ",H:0/0/0,S:2>$ $Cable1$" + my_email + "$" + my_share_size.ToString() + "$");
01315             //TODO add user flag support and hubs accounting
01316             SendCommand("MyINFO", "$ALL " + nick + " "+my_description+"<" + my_name + " V:" + my_tag_version + ",M:" + temp_connection_mode + ",H:1/2/2,S:2>$ $"+my_connection_speed+(char)0x01+"$" + my_email + "$" + my_share_size.ToString() + "$");
01317             //                                                                                                                                             ,O:0
01318         }

void DCPlusPlus.Hub.SendPassword ( string password )

Send a password to the hub.

Parameters:

password

the correct password

Definition at line 1267 of file Hub.cs.

01268         {
01269             if (string.IsNullOrEmpty(password)) return;
01270             SendCommand("MyPass", password);
01271         }

[Test] void DCPlusPlus.Hub.TestLocalHubConnect ( )

Test to connect to a local hub.

Definition at line 1799 of file Hub.cs.

References DCPlusPlus.Hub.Address, DCPlusPlus.Hub.Connect(), DCPlusPlus.Hub.Connected, DCPlusPlus.Hub.Disconnect(), DCPlusPlus.Hub.Disconnected, DCPlusPlus.Hub.IsGrabbedByClient, DCPlusPlus.Hub.LoggedIn, and DCPlusPlus.Hub.UnableToConnect.

01800         {
01801             Console.WriteLine("Test to connect to a local hub (remember to start some hub before).");
01802             bool wait = true;
01803             Hub hub = new Hub();
01804             hub.Address = "localhost";
01805             hub.Connected += delegate(Hub connected)
01806             {
01807                 Console.WriteLine("Hub Connected");
01808                 //Assert.IsTrue(!string.IsNullOrEmpty(external_ip), "no ip address fetched");
01809                 //wait = false;
01810             };
01811             hub.LoggedIn += delegate(Hub logged_in)
01812             {
01813                 Console.WriteLine("Hub Logged in");
01814                 wait = false;
01815             };
01816             hub.Disconnected += delegate(Hub disconnected)
01817             {
01818                 if (wait)
01819                 {
01820                     Console.WriteLine("Test failed : Hub disconnected.");
01821                     Assert.Fail("Test failed : Hub disconnected.");
01822                 }
01823             };
01824             hub.UnableToConnect += delegate(Hub error)
01825             {
01826                 Console.WriteLine("Test failed : Unable to connect to");
01827             };
01828             hub.IsGrabbedByClient = true;
01829             hub.Connect();
01830             Console.WriteLine("Waiting for hub events.");
01831             DateTime start = DateTime.Now;
01832             while (wait)
01833             {
01834                 if (DateTime.Now - start > new TimeSpan(0, 0, 10))
01835                 {
01836                     Console.WriteLine("");
01837                     Console.WriteLine("Operation took too long");
01838                     wait = false;
01839                     Assert.Fail("Operation took too long");
01840                 }
01841                 Console.Write(".");
01842                 Thread.Sleep(250);
01843             }
01844             hub.Disconnect();
01845             Console.WriteLine("Local Hub Connect Test successful.");
01846         }

Here is the call graph for this function:

delegate void DCPlusPlus.Hub.UnableToConnectEventHandler ( Hub hub )

Prototype for the Unable To Connect Event Handler.

Parameters:

hub

the hub we failed to connect to

void DCPlusPlus.Hub.Ungrab ( )

Remove the event handlers from the hub.

Definition at line 1782 of file Hub.cs.

Referenced by DCPlusPlus.Client.DisconnectHub().

01783         {
01784             Connected = null;
01785             Disconnected = null;
01786             UnableToConnect = null;
01787             LoggedIn = null;
01788             SearchResultReceived = null;
01789             UserJoined = null;
01790             UserQuit = null;
01791             MoveForced = null;
01792             is_grabbed = false;
01793         }

Here is the caller graph for this function:

delegate void DCPlusPlus.Hub.UserJoinedEventHandler	(	Hub	hub,
		string	username
	)

Prototype for the User Joined Event Handler.

Parameters:

	hub	the hub to which the user connected to
	username	the user that went online

void DCPlusPlus.Hub.UserListAdd ( string username ) [private]

Add a user to the userlist and fires an user joined event.

Parameters:

username

the user connected to the hub

Definition at line 1345 of file Hub.cs.

01346         {
01347             user_list.Add(username);
01348             try
01349             {
01350                 if (UserJoined != null)
01351                     UserJoined(this, username);
01352             }
01353             catch (Exception ex)
01354             {
01355                 Console.WriteLine("Exception in UserJoined: " + ex.Message);
01356             }
01357         }

void DCPlusPlus.Hub.UserListClear ( ) [private]

Clear the userlist this will UserListRemove() them first so a lot of events maybe triggered by this.

Definition at line 1381 of file Hub.cs.

01382         {
01383             if(user_list.Count>0)
01384                 foreach (string temp_user in user_list)
01385                 {
01386                     UserListRemove(temp_user);
01387                 }
01388             user_list.Clear();
01389         }

void DCPlusPlus.Hub.UserListRemove ( string username ) [private]

Remove a user from the userlist and fires an user quit event.

Parameters:

username

the user that disconnected from the hub

Definition at line 1363 of file Hub.cs.

01364         {
01365             user_list.Remove(username);
01366             try
01367             {
01368                 if (UserQuit != null)
01369                     UserQuit(this, username);
01370             }
01371             catch (Exception ex)
01372             {
01373                 Console.WriteLine("Exception in UserJoined: " + ex.Message);
01374             }
01375         }

delegate void DCPlusPlus.Hub.UserQuitEventHandler	(	Hub	hub,
		string	username
	)

Prototype for the User Quit Event Handler.

Parameters:

	hub	the hub from which the user disconnected
	username	the user that went offline

Member Data Documentation

string DCPlusPlus.Hub.address = "" [protected]

Definition at line 307 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Connect(), DCPlusPlus.Hub.Copy(), and DCPlusPlus.Hub.OnHostResolve().

bool DCPlusPlus.Hub.auto_reconnect = false [protected]

Definition at line 505 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

List<ChatLine> DCPlusPlus.Hub.chat_history = new List<ChatLine>() [protected]

Definition at line 562 of file Hub.cs.

int DCPlusPlus.Hub.chat_history_max_length = 0 [protected]

Definition at line 522 of file Hub.cs.

event ConnectedEventHandler DCPlusPlus.Hub.Connected

Event handler that gets called when a hub connection was established.

Definition at line 157 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub(), DCPlusPlus.Hub.Copy(), and DCPlusPlus.Hub.TestLocalHubConnect().

event ConnectToMeEventHandler DCPlusPlus.Hub.ConnectToMeReceived

Event handler that gets called when connection request was received.

Definition at line 137 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

string DCPlusPlus.Hub.country = "" [protected]

Definition at line 358 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

string DCPlusPlus.Hub.description = "" [protected]

Definition at line 343 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

event DisconnectedEventHandler DCPlusPlus.Hub.Disconnected

Event handler that gets called when a hub was disconnected.

Reimplemented from DCPlusPlus.Connection.

Definition at line 147 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub(), DCPlusPlus.Hub.Copy(), DCPlusPlus.Hub.Disconnect(), and DCPlusPlus.Hub.TestLocalHubConnect().

bool DCPlusPlus.Hub.is_grabbed = false [protected]

Definition at line 478 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

bool DCPlusPlus.Hub.is_logged_in = false [protected]

Definition at line 493 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy(), DCPlusPlus.Hub.Disconnect(), and DCPlusPlus.Hub.Hub().

event LoggedInEventHandler DCPlusPlus.Hub.LoggedIn

Event handler that gets called when the client logged in a hub.

Definition at line 103 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub(), DCPlusPlus.Hub.Copy(), and DCPlusPlus.Hub.TestLocalHubConnect().

event MainChatLineReceivedEventHandler DCPlusPlus.Hub.MainChatLineReceived

Event handler that gets called when a chat message was received from a hub.

Definition at line 60 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

int DCPlusPlus.Hub.max_hubs = 0 [protected]

Definition at line 435 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

long DCPlusPlus.Hub.max_users = 0 [protected]

Definition at line 450 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

long DCPlusPlus.Hub.min_share = 0 [protected]

Definition at line 405 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

int DCPlusPlus.Hub.min_slots = 0 [protected]

Definition at line 420 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

event MoveForcedEventHandler DCPlusPlus.Hub.MoveForced

Event handler that gets called when a hub wants us to connect to another hub.

Definition at line 126 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub(), and DCPlusPlus.Hub.Copy().

ConnectionMode DCPlusPlus.Hub.my_connection_mode = ConnectionMode.Passive [protected]

Definition at line 842 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

string DCPlusPlus.Hub.my_connection_speed = "0.02" [protected]

Definition at line 810 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

string DCPlusPlus.Hub.my_description = "" [protected]

Definition at line 691 of file Hub.cs.

string DCPlusPlus.Hub.my_email = "unknown@unknown.net" [protected]

Definition at line 676 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

string DCPlusPlus.Hub.my_ip = "" [protected]

Definition at line 615 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

string DCPlusPlus.Hub.my_name = "c#++" [protected]

Definition at line 661 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

long DCPlusPlus.Hub.my_share_size = 0 [protected]

Definition at line 706 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

string DCPlusPlus.Hub.my_tag_version = "0.698" [protected]

Definition at line 646 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

int DCPlusPlus.Hub.my_tcp_port = 0 [protected]

Definition at line 721 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

int DCPlusPlus.Hub.my_udp_port = 0 [protected]

Definition at line 737 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

string DCPlusPlus.Hub.my_version = "1,0091" [protected]

Definition at line 631 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

string DCPlusPlus.Hub.name = "" [protected]

Definition at line 292 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Connect(), DCPlusPlus.Hub.Copy(), DCPlusPlus.Hub.Disconnect(), and DCPlusPlus.Hub.OnHostResolve().

List<string> DCPlusPlus.Hub.op_list = new List<string>() [protected]

Definition at line 597 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

event PasswordRequestedEventHandler DCPlusPlus.Hub.PasswordRequested

Event handler that gets called when a hub requested a password to use the specified username should return the password if it is known.

Definition at line 115 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

event PrivateChatLineReceivedEventHandler DCPlusPlus.Hub.PrivateChatLineReceived

Event handler that gets called when a private message was received from a hub.

Definition at line 71 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

string DCPlusPlus.Hub.received_string_buffer = "" [private]

a temporary fifo buffer to fight packet fragmentation and incomplete commands that packet fragmentation introduces

Definition at line 1394 of file Hub.cs.

event SearchReceivedEventHandler DCPlusPlus.Hub.SearchReceived

Event handler that gets called when a search was received (another user wants to find something).

Definition at line 49 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

event SearchResultReceivedEventHandler DCPlusPlus.Hub.SearchResultReceived

Event handler that gets called when a search result was received via the hub connection (passive result).

Definition at line 37 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub(), and DCPlusPlus.Hub.Copy().

long DCPlusPlus.Hub.shared = 0 [protected]

Definition at line 390 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

string DCPlusPlus.Hub.topic = "" [protected]

Definition at line 466 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

event UnableToConnectEventHandler DCPlusPlus.Hub.UnableToConnect

Event handler that gets called when a connection to a hub was unable to be established.

Reimplemented from DCPlusPlus.Connection.

Definition at line 167 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub(), DCPlusPlus.Hub.Copy(), DCPlusPlus.Hub.Disconnect(), and DCPlusPlus.Hub.TestLocalHubConnect().

List<string> DCPlusPlus.Hub.user_list = new List<string>() [protected]

Definition at line 579 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

event UserJoinedEventHandler DCPlusPlus.Hub.UserJoined

Event handler that gets called when a user joined a hub.

Definition at line 93 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub(), and DCPlusPlus.Hub.Copy().

event UserQuitEventHandler DCPlusPlus.Hub.UserQuit

Event handler that gets called when a user was disconnected from a hub.

Definition at line 82 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub(), and DCPlusPlus.Hub.Copy().

long DCPlusPlus.Hub.users = 0 [protected]

Definition at line 373 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy().

Property Documentation

string DCPlusPlus.Hub.Address [get, set]

the hub address

Definition at line 312 of file Hub.cs.

Referenced by DCPlusPlus.Queue.AddFileList(), DCPlusPlus.HubList.ReadHub(), and DCPlusPlus.Hub.TestLocalHubConnect().

bool DCPlusPlus.Hub.AutoReconnect [get, set]

TODO add auto reconnect feature [not implemented].

Definition at line 511 of file Hub.cs.

List<ChatLine> DCPlusPlus.Hub.ChatHistory [get, set]

the chat history of the hub (Todo change this to a enumeration at the moment it can throw list modified exceptions)

Definition at line 569 of file Hub.cs.

int DCPlusPlus.Hub.ChatHistoryMaxLength [get, set]

the maximum chat history length if reached chat lines will be discarded

Definition at line 528 of file Hub.cs.

string DCPlusPlus.Hub.Country [get, set]

the country in which the hubs resides in

Definition at line 363 of file Hub.cs.

Referenced by DCPlusPlus.HubList.ReadHub().

string DCPlusPlus.Hub.Description [get, set]

the hub description

Definition at line 348 of file Hub.cs.

Referenced by DCPlusPlus.HubList.ReadHub().

bool DCPlusPlus.Hub.IsGrabbedByClient [get, set]

TRUE if a client has added some event handlers to this hub.

Definition at line 483 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub(), and DCPlusPlus.Hub.TestLocalHubConnect().

bool DCPlusPlus.Hub.IsLoggedIn [get]

TRUE if we are logged into this hub.

Definition at line 498 of file Hub.cs.

int DCPlusPlus.Hub.MaxHubs [get, set]

the maximum number of hubs a client can be connected to to connect to this hub

Definition at line 440 of file Hub.cs.

Referenced by DCPlusPlus.HubList.ReadHub().

long DCPlusPlus.Hub.MaxUsers [get, set]

the maximum number of users this hub supports

Definition at line 455 of file Hub.cs.

Referenced by DCPlusPlus.HubList.ReadHub().

long DCPlusPlus.Hub.MinShare [get, set]

the minimum amount of shared bytes a client needs to connect to this hub

Definition at line 410 of file Hub.cs.

Referenced by DCPlusPlus.HubList.ReadHub().

int DCPlusPlus.Hub.MinSlots [get, set]

the minimum amount of open slots a client needs to connect to this hub

Definition at line 425 of file Hub.cs.

Referenced by DCPlusPlus.HubList.ReadHub().

ConnectionMode DCPlusPlus.Hub.MyConnectionMode [get, set]

the connection mode to use on this hub this will decide how to connect to peers active or passive

Definition at line 849 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

string DCPlusPlus.Hub.MyConnectionSpeed [get, set]

the connection speed of the client pc to the internet

Definition at line 815 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

string DCPlusPlus.Hub.MyDescription [get, set]

the user description

Definition at line 696 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

string DCPlusPlus.Hub.MyEmail [get, set]

the email address of the user

Definition at line 681 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

string DCPlusPlus.Hub.MyIP [get, set]

set it to the external ip of the client pc it will we used for active connection requests

Definition at line 621 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

string DCPlusPlus.Hub.MyName [get, set]

the name of the client

Definition at line 666 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

long DCPlusPlus.Hub.MyShareSize [get, set]

the total number of shared bytes by the client

Definition at line 711 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

string DCPlusPlus.Hub.MyTagVersion [get, set]

the version of the client that is used in the myinfo tag

Definition at line 651 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

int DCPlusPlus.Hub.MyTcpPort [get, set]

the local tcp port used by the client to accept remote connections

Definition at line 727 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

int DCPlusPlus.Hub.MyUdpPort [get, set]

the local udp port used by the client to receive udp search results

Definition at line 743 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

string DCPlusPlus.Hub.MyVersion [get, set]

the version of the client

Definition at line 636 of file Hub.cs.

Referenced by DCPlusPlus.Client.ConnectHub().

string DCPlusPlus.Hub.Name [get, set]

the hub name

Definition at line 297 of file Hub.cs.

Referenced by DCPlusPlus.HubList.ReadHub(), and DCPlusPlus.ListeningSockets.SearchReply().

List<string> DCPlusPlus.Hub.OperatorList [get, set]

the operators connected to this hub (Todo change this to a enumeration at the moment it can throw list modified exceptions) TODO add operator events and make them more usable as sources

Definition at line 605 of file Hub.cs.

long DCPlusPlus.Hub.Shared [get, set]

the number of shared bytes on the hub

Definition at line 395 of file Hub.cs.

Referenced by DCPlusPlus.HubList.ReadHub().

string DCPlusPlus.Hub.Topic [get]

the topic of the hub

Definition at line 471 of file Hub.cs.

List<string> DCPlusPlus.Hub.UserList [get, set]

the users connected to this hub (Todo change this to a enumeration at the moment it can throw list modified exceptions)

Definition at line 587 of file Hub.cs.

Referenced by DCPlusPlus.Hub.Copy(), and DCPlusPlus.Client.UpdateSourcesByHub().

long DCPlusPlus.Hub.Users [get, set]

the number of users connected to the hub (as replied from a hublist) TODO support returning of UserList.Count

Definition at line 380 of file Hub.cs.

Referenced by DCPlusPlus.HubList.ReadHub().

The documentation for this class was generated from the following file:

Eigene Dateien/Visual Studio 2005/Projects/DCPlusPlus/DCPlusPlus/Hub.cs

Generated on Wed Mar 7 19:09:30 2007 for DCPlusPlus by

1.5.1-p1

DCPlusPlus.Hub Class Reference

Public Types

Public Member Functions

Public Attributes

Protected Attributes

Properties

Private Member Functions

Private Attributes

Classes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

Property Documentation
