DCPlusPlus.PortCheck

DCPlusPlus.PortCheck Class Reference

a simple class to check for open ports (uses a third party webpage for this) More...

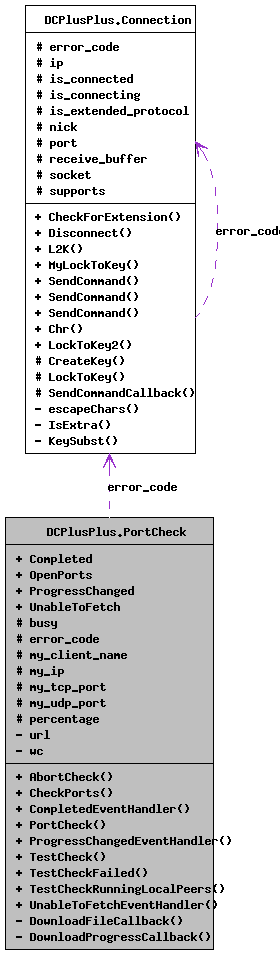

Collaboration diagram for DCPlusPlus.PortCheck:

Collaboration graph
[legend]
List of all members.

Public Types

enum  Ports { UdpAndTcp, Udp, Tcp, None }
 enumeration of possible open ports combinations More...

Public Member Functions

void AbortCheck ()
 Abort checking.
void CheckPorts ()
 Start checking of open ports.
delegate void CompletedEventHandler (PortCheck ex_ip)
 Prototype for the Completed Event Handler.
 PortCheck ()
 PortCheck Constructor.
delegate void ProgressChangedEventHandler (PortCheck ex_ip)
 Prototype for the Progress Changed Event Handler.
[Test] void TestCheck ()
 Test to see if our port checking method works.
[Test] void TestCheckFailed ()
 Test to see if a failed check will not crash the client or throw unexpected exceptions.
[Test] void TestCheckRunningLocalPeers ()
 Test to see if our local ports are available to the outside world.
delegate void UnableToFetchEventHandler (PortCheck ex_ip)
 Prototype for the Unable To Fetch Event Handler.

Public Attributes

event CompletedEventHandler Completed
 Event handler that gets called when a open ports check was completed.
Ports OpenPorts = Ports.None
 Get the open Ports that the test found.
event ProgressChangedEventHandler ProgressChanged
 Event handler that gets called when the progress of the port check changed.
event UnableToFetchEventHandler UnableToFetch
 Event handler that gets called when the port check was unable to complete.

Protected Attributes

bool busy = false
Connection.ErrorCodes error_code = Connection.ErrorCodes.NoErrorYet
string my_client_name = "c#++"
string my_ip
int my_tcp_port
int my_udp_port
int percentage = 0

Properties

Connection.ErrorCodes ErrorCode [get]
 Contains the error code if something went wrong with the open ports check.
bool IsBusy [get]
 TRUE if an open ports check if running.
string MyClientName [get, set]
 Get/Set the client name we want to send to the ports checking service.
string MyIP [get, set]
 Get/Set the ip to check the ports for.
int MyTcpPort [get, set]
 Get/set the tcp port to check.
int MyUdpPort [get, set]
 Get/Set the udp port to check.
int Percentage [get]
 Get the progress percentage of the open ports check.

Private Member Functions

void DownloadFileCallback (object sender, DownloadDataCompletedEventArgs e)
 Async callback for webclients get file operation ,gets called if the file was retrieved successfully.
void DownloadProgressCallback (object sender, DownloadProgressChangedEventArgs e)
 Async callback for webclients get file operation ,gets called when the progress of the download changes.

Private Attributes

string url = "http://connect.majestyc.net/"
 our url to the port checking service we are using
WebClient wc = new WebClient()
 our webclient we use to communicate with the p2p-ports service

Detailed Description

a simple class to check for open ports (uses a third party webpage for this)

Definition at line 20 of file PortCheck.cs.

Member Enumeration Documentation

enum DCPlusPlus::PortCheck::Ports

enumeration of possible open ports combinations

Enumerator:
UdpAndTcp
Udp
Tcp
None

Definition at line 78 of file PortCheck.cs.

00079         {
00080             UdpAndTcp,Udp,Tcp,None
00081         };

Constructor & Destructor Documentation

DCPlusPlus.PortCheck.PortCheck (  )

PortCheck Constructor.

Definition at line 168 of file PortCheck.cs.

References DCPlusPlus.PortCheck.DownloadFileCallback(), DCPlusPlus.PortCheck.DownloadProgressCallback(), DCPlusPlus.PortCheck.my_ip, and DCPlusPlus.PortCheck.wc.

Referenced by DCPlusPlus.PortCheck.TestCheck(), DCPlusPlus.PortCheck.TestCheckFailed(), and DCPlusPlus.PortCheck.TestCheckRunningLocalPeers().

00169         {
00170             my_ip = "";
00171             wc.DownloadProgressChanged += new DownloadProgressChangedEventHandler(DownloadProgressCallback);
00172             wc.DownloadDataCompleted += new DownloadDataCompletedEventHandler(DownloadFileCallback);
00173
00174         }

Here is the call graph for this function:

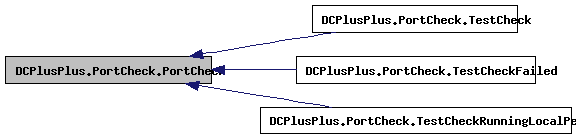

Here is the caller graph for this function:

Member Function Documentation

void DCPlusPlus.PortCheck.AbortCheck (  )

Abort checking.

Definition at line 204 of file PortCheck.cs.

References DCPlusPlus.PortCheck.busy, and DCPlusPlus.PortCheck.wc.

00205         {
00206             if (busy)
00207             {
00208                 try
00209                 {
00210                     wc.CancelAsync();
00211                 }
00212                 catch (Exception ex)
00213                 {
00214                     Console.WriteLine("Exception occured during abort: " + ex.Message);
00215                 }
00216                 System.Threading.Thread.Sleep(10);
00217                 //wc.IsBusy
00218                 //wc = new WebClient();
00219                 busy = false;
00220             }
00221         }

void DCPlusPlus.PortCheck.CheckPorts (  )

Start checking of open ports.

Definition at line 182 of file PortCheck.cs.

References DCPlusPlus.PortCheck.busy, DCPlusPlus.PortCheck.my_client_name, DCPlusPlus.PortCheck.my_ip, DCPlusPlus.PortCheck.my_tcp_port, DCPlusPlus.PortCheck.my_udp_port, DCPlusPlus.PortCheck.percentage, DCPlusPlus.PortCheck.ProgressChanged, DCPlusPlus.PortCheck.url, and DCPlusPlus.PortCheck.wc.

Referenced by DCPlusPlus.PortCheck.TestCheck(), DCPlusPlus.PortCheck.TestCheckFailed(), and DCPlusPlus.PortCheck.TestCheckRunningLocalPeers().

00183         {
00184             if (!busy)
00185             {
00186                 busy = true;
00187                 percentage = 0;
00188                 if (ProgressChanged != null)
00189                     ProgressChanged(this);
00190                 try
00191                 {
00192                     wc.DownloadDataAsync(new Uri(url+"?i="+my_ip+"&t="+my_tcp_port+"&u="+my_udp_port+"&c="+my_client_name));
00193                 }
00194                 catch (Exception ex)
00195                 {
00196                     Console.WriteLine("Exception occured during download: " + ex.Message);
00197                 }
00198             }
00199
00200         }

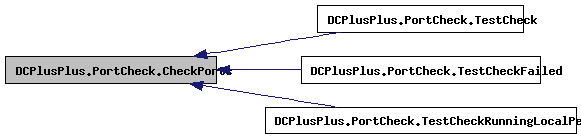

Here is the caller graph for this function:

delegate void DCPlusPlus.PortCheck.CompletedEventHandler ( PortCheck  ex_ip  )

Prototype for the Completed Event Handler.

Parameters:
ex_ip

void DCPlusPlus.PortCheck.DownloadFileCallback ( object  sender,
DownloadDataCompletedEventArgs  e
) [private]

Async callback for webclients get file operation ,gets called if the file was retrieved successfully.

Parameters:
sender event sending webclient instance
e event arguments of the download operation

Definition at line 228 of file PortCheck.cs.

References DCPlusPlus.PortCheck.busy, DCPlusPlus.PortCheck.Completed, DCPlusPlus.PortCheck.error_code, DCPlusPlus.PortCheck.OpenPorts, and DCPlusPlus.PortCheck.UnableToFetch.

Referenced by DCPlusPlus.PortCheck.PortCheck().

00229         {
00230             try
00231             {
00232                 if (e.Cancelled) return;
00233                 if (e.Result.Length <= 0) return;
00234                 string page_string = "";
00235                 page_string = System.Text.Encoding.Default.GetString(e.Result);
00236                 //Console.WriteLine("port page: " + page_string);
00237                 int start = page_string.IndexOf("<strong class=\"");
00238                 if (start != -1)
00239                 {
00240                     string temp = page_string.Substring(start + "<strong class=\"".Length);
00241                     int end = temp.IndexOf("\"");
00242                     if (end != -1)
00243                     {
00244                         string tcp = temp.Substring(0, end);
00245                         if (tcp == "green small")
00246                             OpenPorts = Ports.Tcp;
00247                         else OpenPorts = Ports.None;
00248
00249                         start = temp.IndexOf("<strong class=\"");
00250                         if (start != -1)
00251                         {
00252                             string temp2 = temp.Substring(start + "<strong class=\"".Length);
00253                             end = temp2.IndexOf("\"");
00254                             if (end != -1)
00255                             {
00256                                 string udp = temp2.Substring(0, end);
00257                                 if (udp == "green small" && OpenPorts == Ports.None)
00258                                     OpenPorts = Ports.Udp;
00259                                 if (udp == "green small" && OpenPorts == Ports.Tcp)
00260                                     OpenPorts = Ports.UdpAndTcp;
00261
00262                                 busy = false;
00263                                 if (Completed != null)
00264                                     Completed(this);
00265                             }
00266                         }
00267                     }
00268                 }
00269             }
00270             catch (Exception out_ex)
00271             {
00272                 Console.WriteLine("Exception during download of port page: " + out_ex.Message);
00273                 error_code = Connection.ErrorCodes.Exception;
00274                 if (UnableToFetch != null)
00275                     UnableToFetch(this);
00276
00277             }
00278         }

Here is the caller graph for this function:

void DCPlusPlus.PortCheck.DownloadProgressCallback ( object  sender,
DownloadProgressChangedEventArgs  e
) [private]

Async callback for webclients get file operation ,gets called when the progress of the download changes.

Parameters:
sender event sending webclient instance
e event arguments of the download operation

Definition at line 285 of file PortCheck.cs.

References DCPlusPlus.PortCheck.percentage, and DCPlusPlus.PortCheck.ProgressChanged.

Referenced by DCPlusPlus.PortCheck.PortCheck().

00286         {
00287             percentage = e.ProgressPercentage;
00288             if (ProgressChanged != null)
00289                 ProgressChanged(this);
00290         }

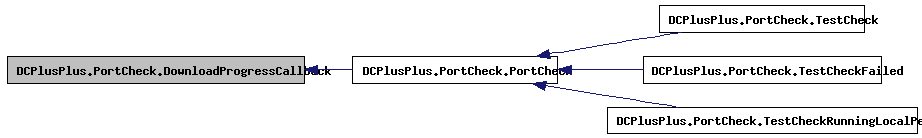

Here is the caller graph for this function:

delegate void DCPlusPlus.PortCheck.ProgressChangedEventHandler ( PortCheck  ex_ip  )

Prototype for the Progress Changed Event Handler.

Parameters:
ex_ip

[Test] void DCPlusPlus.PortCheck.TestCheck (  )

Test to see if our port checking method works.

Definition at line 296 of file PortCheck.cs.

References DCPlusPlus.PortCheck.CheckPorts(), DCPlusPlus.PortCheck.Completed, DCPlusPlus.ExternalIP.Completed, DCPlusPlus.ExternalIP.FetchIP(), DCPlusPlus.PortCheck.MyIP, DCPlusPlus.ExternalIP.MyIP, DCPlusPlus.PortCheck.MyTcpPort, DCPlusPlus.PortCheck.MyUdpPort, DCPlusPlus.PortCheck.OpenPorts, and DCPlusPlus.PortCheck.PortCheck().

00297         {
00298             Console.WriteLine("Test to check open ports.");
00299             bool wait = true;
00300
00301             //Assert.IsTrue(!string.IsNullOrEmpty(port_check_completed.MyIP), "no ip address fetched");
00302             ExternalIP ex_ip = new ExternalIP();
00303             ex_ip.Completed += delegate(ExternalIP ex_ip_completed)
00304             {
00305                 wait = true;
00306                 Console.WriteLine("Fetch Completed (ip found : " + ex_ip_completed.MyIP + ")");
00307                 PortCheck port_check = new PortCheck();
00308                 port_check.MyIP = ex_ip.MyIP;
00309                 port_check.MyTcpPort = 3412;
00310                 port_check.MyUdpPort = 3412;
00311
00312                 port_check.Completed += delegate(PortCheck port_check_completed)
00313                 {
00314                     Console.WriteLine("");
00315                     Console.WriteLine("Check Completed (open ports : " + Enum.GetName(typeof(Ports), port_check_completed.OpenPorts) + ")");
00316                     wait = false;
00317                 };
00318                 port_check.CheckPorts();
00319
00320             };
00321             ex_ip.FetchIP();
00322             Console.WriteLine("Waiting for data");
00323             DateTime ip_start = DateTime.Now;
00324             while (wait)
00325             {
00326                 if (DateTime.Now - ip_start > new TimeSpan(0, 0, 35))
00327                 {
00328                     Console.WriteLine("");
00329                     Console.WriteLine("Operation took too long");
00330                     wait = false;
00331                     Assert.Fail("Operation took too long");
00332                 }
00333                 Console.Write(".");
00334                 Thread.Sleep(250);
00335             }
00336             Console.WriteLine("PortCheck open ports Test successful.");
00337
00338         }

Here is the call graph for this function:

[Test] void DCPlusPlus.PortCheck.TestCheckFailed (  )

Test to see if a failed check will not crash the client or throw unexpected exceptions.

Definition at line 397 of file PortCheck.cs.

References DCPlusPlus.PortCheck.CheckPorts(), DCPlusPlus.PortCheck.Completed, DCPlusPlus.PortCheck.PortCheck(), DCPlusPlus.PortCheck.UnableToFetch, and DCPlusPlus.PortCheck.url.

00398         {
00399             Console.WriteLine("Test to fail checking open ports.");
00400             bool wait = true;
00401             PortCheck port_check = new PortCheck();
00402             port_check.url = "http://bogus.url";
00403             port_check.Completed += delegate(PortCheck port_check_completed)
00404             {
00405                 Console.WriteLine("");
00406                 Console.WriteLine("Check Completed.");
00407                 Assert.Fail("Failed at failing ;-(");
00408             };
00409             port_check.UnableToFetch += delegate(PortCheck port_check_unable)
00410             {
00411                 Console.WriteLine("");
00412                 Console.WriteLine("Failed to fetch check page.");
00413                 wait = false;
00414
00415             };
00416
00417             port_check.CheckPorts();
00418             Console.WriteLine("Waiting for data");
00419             DateTime start = DateTime.Now;
00420             while (wait)
00421             {
00422                 if (DateTime.Now - start > new TimeSpan(0, 0, 5))
00423                 {
00424                     Console.WriteLine("");
00425                     Console.WriteLine("Operation took too long");
00426                     wait = false;
00427                     Assert.Fail("Operation took too long");
00428                 }
00429                 Console.Write(".");
00430                 Thread.Sleep(250);
00431             }
00432             Console.WriteLine("Failed PortCheck Test successful.");
00433         }

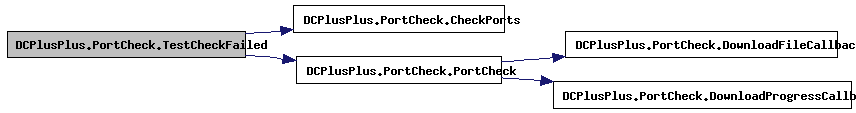

Here is the call graph for this function:

[Test] void DCPlusPlus.PortCheck.TestCheckRunningLocalPeers (  )

Test to see if our local ports are available to the outside world.

Definition at line 343 of file PortCheck.cs.

References DCPlusPlus.PortCheck.CheckPorts(), DCPlusPlus.PortCheck.Completed, DCPlusPlus.ExternalIP.Completed, DCPlusPlus.ExternalIP.FetchIP(), DCPlusPlus.PortCheck.MyIP, DCPlusPlus.ExternalIP.MyIP, DCPlusPlus.PortCheck.MyTcpPort, DCPlusPlus.PortCheck.MyUdpPort, DCPlusPlus.PortCheck.OpenPorts, DCPlusPlus.PortCheck.PortCheck(), DCPlusPlus.ListeningSockets.TcpPort, DCPlusPlus.ListeningSockets.UdpPort, and DCPlusPlus.ListeningSockets.UpdateConnectionSettings().

00344         {
00345             Console.WriteLine("Test to check running open ports.");
00346             bool wait = true;
00347             ListeningSockets ls = new ListeningSockets();
00348             ls.TcpPort = 3412;
00349             ls.UdpPort = 3412;
00350             ls.UpdateConnectionSettings();
00351
00352             //Assert.IsTrue(!string.IsNullOrEmpty(port_check_completed.MyIP), "no ip address fetched");
00353             ExternalIP ex_ip = new ExternalIP();
00354             ex_ip.Completed += delegate(ExternalIP ex_ip_completed)
00355             {
00356                 wait = true;
00357                 Console.WriteLine("Fetch Completed (ip found : " + ex_ip_completed.MyIP + ")");
00358                 PortCheck port_check = new PortCheck();
00359                 port_check.MyIP = ex_ip.MyIP;
00360                 port_check.MyTcpPort = 3412;
00361                 port_check.MyUdpPort = 3412;
00362
00363                 port_check.Completed += delegate(PortCheck port_check_completed)
00364                 {
00365                     Console.WriteLine("");
00366                     Console.WriteLine("Check Completed (open ports : " + Enum.GetName(typeof(Ports), port_check_completed.OpenPorts) + ")");
00367                     if(port_check_completed.OpenPorts == Ports.None || port_check_completed.OpenPorts == Ports.Udp)
00368                         Assert.Fail("Test failed: tcp port not open!");
00369                     wait = false;
00370                 };
00371                 port_check.CheckPorts();
00372
00373             };
00374             ex_ip.FetchIP();
00375             Console.WriteLine("Waiting for data");
00376             DateTime ip_start = DateTime.Now;
00377             while (wait)
00378             {
00379                 if (DateTime.Now - ip_start > new TimeSpan(0, 0, 35))
00380                 {
00381                     Console.WriteLine("");
00382                     Console.WriteLine("Operation took too long");
00383                     wait = false;
00384                     Assert.Fail("Operation took too long");
00385                 }
00386                 Console.Write(".");
00387                 Thread.Sleep(250);
00388             }
00389             Console.WriteLine("PortCheck running open ports Test successful.");
00390
00391         }

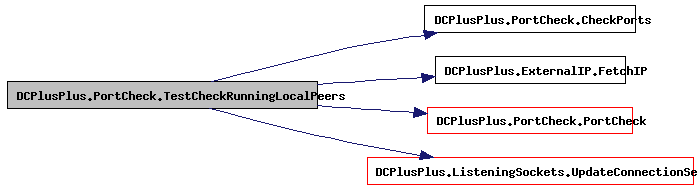

Here is the call graph for this function:

delegate void DCPlusPlus.PortCheck.UnableToFetchEventHandler ( PortCheck  ex_ip  )

Prototype for the Unable To Fetch Event Handler.

Parameters:
ex_ip

Member Data Documentation

bool DCPlusPlus.PortCheck.busy = false [protected]

Definition at line 150 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.AbortCheck(), DCPlusPlus.PortCheck.CheckPorts(), and DCPlusPlus.PortCheck.DownloadFileCallback().

event CompletedEventHandler DCPlusPlus.PortCheck.Completed

Event handler that gets called when a open ports check was completed.

Definition at line 26 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.DownloadFileCallback(), DCPlusPlus.PortCheck.TestCheck(), DCPlusPlus.PortCheck.TestCheckFailed(), and DCPlusPlus.PortCheck.TestCheckRunningLocalPeers().

Connection.ErrorCodes DCPlusPlus.PortCheck.error_code = Connection.ErrorCodes.NoErrorYet [protected]

Definition at line 52 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.DownloadFileCallback().

string DCPlusPlus.PortCheck.my_client_name = "c#++" [protected]

Definition at line 102 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.CheckPorts().

string DCPlusPlus.PortCheck.my_ip [protected]

Definition at line 86 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.CheckPorts(), and DCPlusPlus.PortCheck.PortCheck().

int DCPlusPlus.PortCheck.my_tcp_port [protected]

Definition at line 134 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.CheckPorts().

int DCPlusPlus.PortCheck.my_udp_port [protected]

Definition at line 118 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.CheckPorts().

Ports DCPlusPlus.PortCheck.OpenPorts = Ports.None

Get the open Ports that the test found.

Definition at line 85 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.DownloadFileCallback(), DCPlusPlus.PortCheck.TestCheck(), and DCPlusPlus.PortCheck.TestCheckRunningLocalPeers().

int DCPlusPlus.PortCheck.percentage = 0 [protected]

Definition at line 63 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.CheckPorts(), and DCPlusPlus.PortCheck.DownloadProgressCallback().

event ProgressChangedEventHandler DCPlusPlus.PortCheck.ProgressChanged

Event handler that gets called when the progress of the port check changed.

Definition at line 31 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.CheckPorts(), and DCPlusPlus.PortCheck.DownloadProgressCallback().

event UnableToFetchEventHandler DCPlusPlus.PortCheck.UnableToFetch

Event handler that gets called when the port check was unable to complete.

Definition at line 36 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.DownloadFileCallback(), and DCPlusPlus.PortCheck.TestCheckFailed().

string DCPlusPlus.PortCheck.url = "http://connect.majestyc.net/" [private]

our url to the port checking service we are using

Definition at line 178 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.CheckPorts(), and DCPlusPlus.PortCheck.TestCheckFailed().

WebClient DCPlusPlus.PortCheck.wc = new WebClient() [private]

our webclient we use to communicate with the p2p-ports service

Definition at line 164 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.AbortCheck(), DCPlusPlus.PortCheck.CheckPorts(), and DCPlusPlus.PortCheck.PortCheck().

Property Documentation

Connection.ErrorCodes DCPlusPlus.PortCheck.ErrorCode [get]

Contains the error code if something went wrong with the open ports check.

Definition at line 57 of file PortCheck.cs.

bool DCPlusPlus.PortCheck.IsBusy [get]

TRUE if an open ports check if running.

Definition at line 155 of file PortCheck.cs.

string DCPlusPlus.PortCheck.MyClientName [get, set]

Get/Set the client name we want to send to the ports checking service.

Definition at line 107 of file PortCheck.cs.

string DCPlusPlus.PortCheck.MyIP [get, set]

Get/Set the ip to check the ports for.

Definition at line 91 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.TestCheck(), and DCPlusPlus.PortCheck.TestCheckRunningLocalPeers().

int DCPlusPlus.PortCheck.MyTcpPort [get, set]

Get/set the tcp port to check.

Definition at line 139 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.TestCheck(), and DCPlusPlus.PortCheck.TestCheckRunningLocalPeers().

int DCPlusPlus.PortCheck.MyUdpPort [get, set]

Get/Set the udp port to check.

Definition at line 123 of file PortCheck.cs.

Referenced by DCPlusPlus.PortCheck.TestCheck(), and DCPlusPlus.PortCheck.TestCheckRunningLocalPeers().

int DCPlusPlus.PortCheck.Percentage [get]

Get the progress percentage of the open ports check.

Definition at line 68 of file PortCheck.cs.

The documentation for this class was generated from the following file:
Generated on Wed Mar 7 19:09:39 2007 for DCPlusPlus by  doxygen 1.5.1-p1
